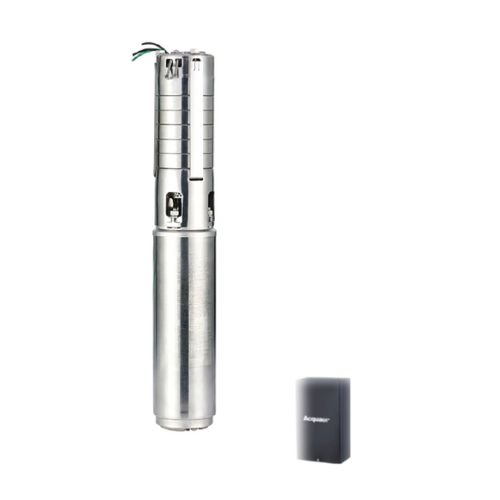

Leo DWS075-3 3/4 HP Stainless Steel 4″ Submersible Pump w/ Control Box 230V 3-Wire

Leo DWS075-3 3/4 HP Stainless Steel 4″ Submersible Pump comes with the control box and is 230v 3 wire connection. 1-1/4″ NPT outlet connection and stainless steel pump and motor housing.

Features

• Fits inside any 4’‘ opening
• Water cooled submersible motor
• Corrosion-resistant stainless-steel pump and motor housing
• 3-wire pumps must be used with the correct control box (included)
• 1-1/4’‘ NPT discharge designed to fit most applications
• 5-year warranty

Specifications

Discharge: 1-1/4″ NPT
Motor Housing: AISI304 Stainless Steel
Pump Body: AISI304 Stainless Steel
Impeller: AISI304 Stainless Steel
Seal Design Motor laser welding Seal Material / Oil Filled Motor Water filled
Power Cord 3 wires UL3173 14AWG, length: 1m
Expected Life Cycle On 2 sec. Off 2 sec. 300,000 Motor Wires Copper
Self-Priming No
Certification CSA

Technical Information

Leo Submersible Deep Well Pump DWS075-3
